DIC – Analysis packages

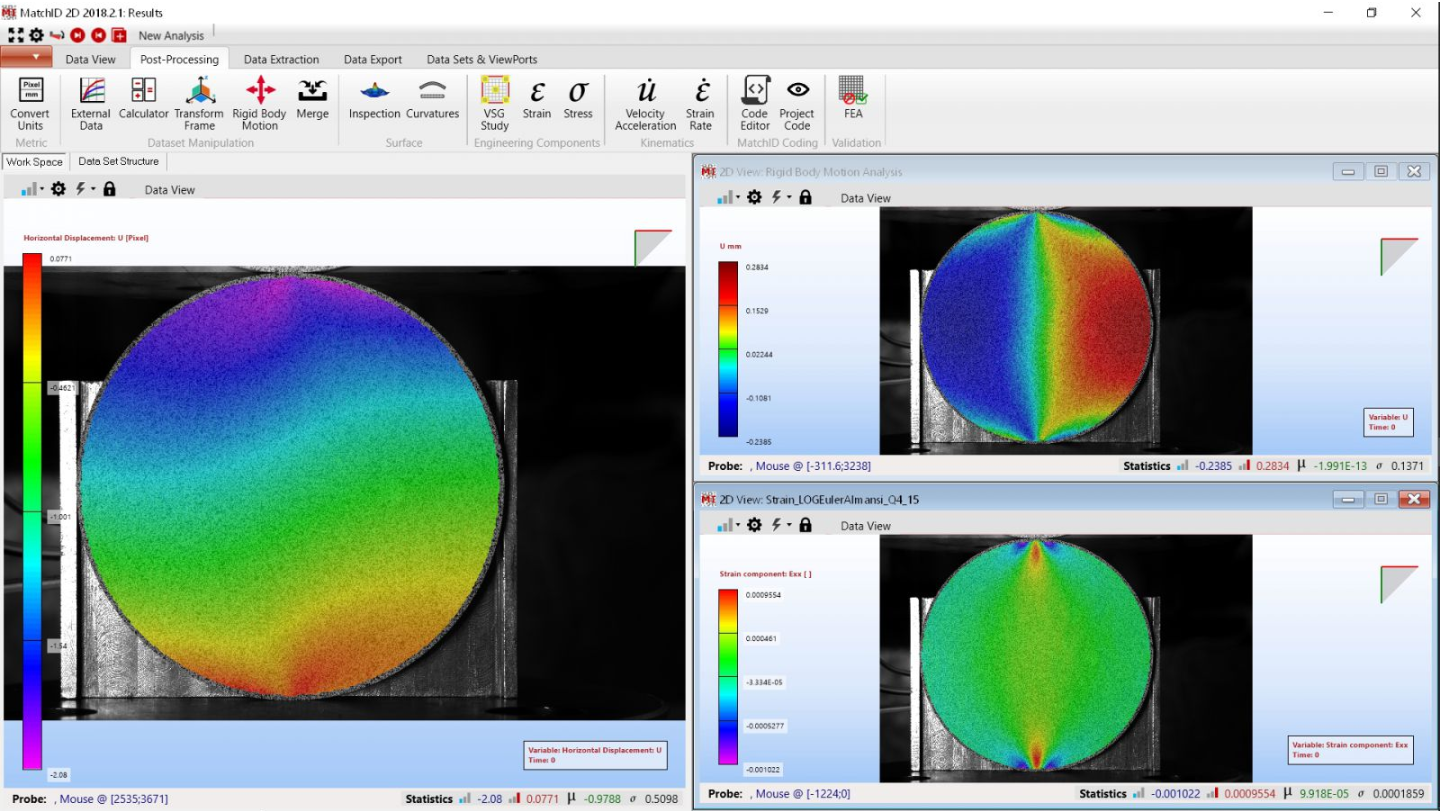

Package 2D: 2D DIC and grid for basic experiments



• Only one camera required
• For experiments in the plane
• On flat samples with a vertical camera orientation
• Grid method for analysing fringe patterns: more optimal spatial resolution
• Processing in batch mode and access to all parameters involved





STEREO package: Stereovision DIC for more demanding tests



• For each test in which out-of-plane movements occur
• For testing components
• 2 camera bases for stereovision with a special calibration procedure
• Processing in batch mode and access to all parameters involved









MULTI package: multi-camera DIC for complete 360° coverage



• Direct calibration of 3 or more participating cameras
• Individual identification and positioning of each camera in the room
• Reduce the number of cameras needed for a full 360° shot









MatchID Results Viewer (included in all packages)

All packages include a very flexible results display and data analysis package as standard, including:

• Data set and multi-viewport concept
• Extraction tools and diagram creation
• Data export in various formats (*.csv,*.mat,*.bmp, *.avi,*.mp4)
• Strains, strain rates, velocities, accelerations, … and stress reconstruction
• Compensation of rigid body movements, coordinate system transformations and alignment tools, surface inspection and curvatures
• FFT and modal analysis tools
• Coding and development of customised applications
• Project and data transfer to unlicensed users



PA: Performance Analysis module (included in all packages)



• Direct calibration of 3 or more participating cameras
• Individual identification and positioning of each camera in the room
• Reduce the number of cameras needed for a full 360° shot









FEDEF: Synthetic image deformation (included in all packages)



• Generation of benchmark FEA-based synthetic images with known values
• Assessment of the inherent systematic error in the DIC
• Create a virtual test campaign to optimise experiments
