High Dynamic Range Cameras

Main features

Enhanced In-Scene Dynamic Range: Measure a span of up to 900 degrees in a single snapshot image without the risk of saturation or underexposure.
High Frame Rate: Measure dynamic events at high temporal resolution with framerates up to 650 Hz in the full detector window configuration
Image Hot and Cold Target Simultaneously: Efficient imaging of scenes display a wide range of temperatures
Quick Automatic Attenuation Filter Transition: The HDR cameras automatically select the best attenuation filter for the scene in less than 50 ms.
For rapidly evolving temperature changes over a wide range: The HDR camera can measure highly dynamic and contrasted scenes ranging up to 2 500 °C.
Automatic exposure control: The camera self-adjusts exposure time depending on the scene, for best imaging.

Downloads

HDR IR Family Factsheet

Download

HDR M700 Factsheet

Download

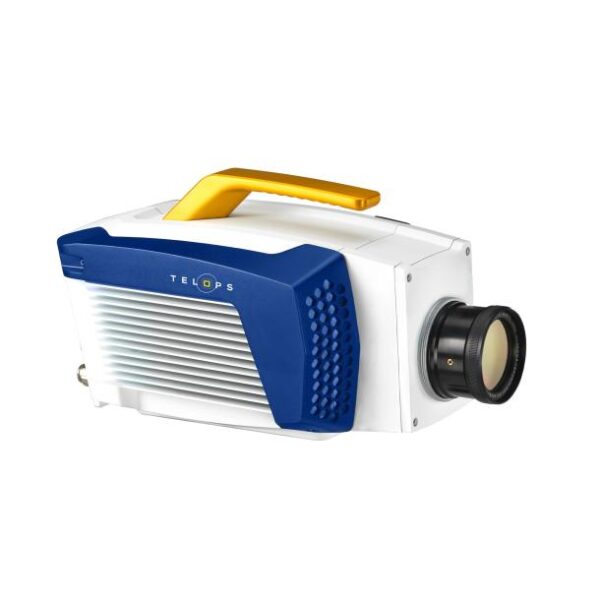

Description

The HDR family of cameras are optimized for high dynamic range performance when presented with scenes containing strong thermal contrast. The HDR M700 signifies a revolutionary upgrade to in-scene dynamic range capabilities available to thermal imaging systems. This all-new camera features a 24-bit architecture and an advanced on-chip saturation management solution to enable measurements of extremely wide temperature ranges in a single snapshot image. Traditional MW thermal cameras can typically measure a range of about 100-150 degrees in a single image using a single exposure time. The advanced design of the HDR M700 allows for a measurement range of approximately 900 degrees in a single exposure time snapshot, allowing for efficient imaging of hot and cold object simultaneously. The HDR-M350 and HDR-M3k employ a unique automated fast-switching netural density filter mechanism designed to continually optimize the dynamic range performance over time and changing scene contrast conditions.

Technical Description

Techn Spez
